Mobile Platform and Electronics
: Mobile Platform:
- TJ/Rugwarrior inspired body designed in AutoCAD
- Bumper made from circle of wood cut into front, back, and two left/right
wing sections
- Each section has lever bump switches which rotate on an axis
- Two Hitec HS-81 Servos - Hacked for full/continuous rotation
- Omni-Directional Caster Wheel (Tamiya 70144) from www.pololu.com
- The caster is extended using 3" threaded rods and nuts
: Electronics:
- Maveric IIB Atmega128 Board (Parent) / Atmega128 Headerboard (Child)

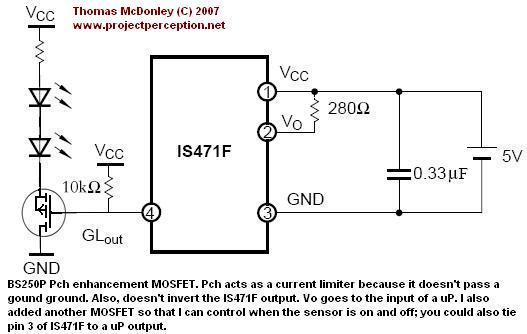

- Custom IS471F Proximity Detector with 2 Pulsed IR LEDs
- LCD 4bit 2x16 (For parent only; children can send messages to parent to display)

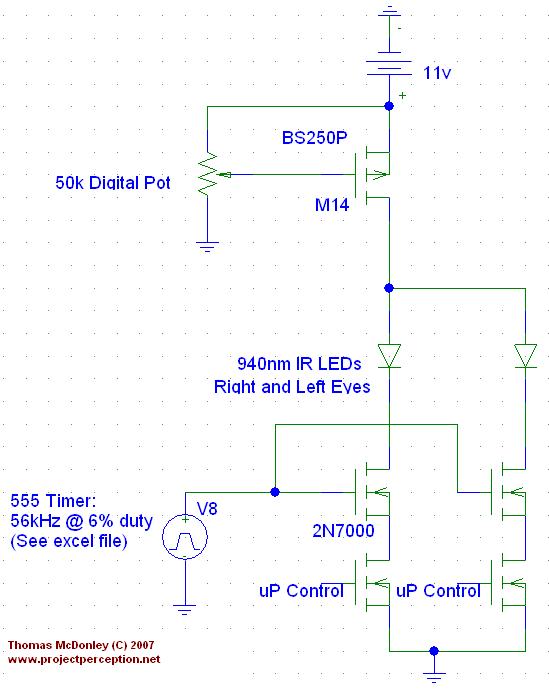

- Custom Sight Sensor using IR 56kHz Detector, two IR LED eyes, 555
timer, and Digital Pot
- RF Link, serial, 315Mhz, 4800bps from www.sparkfun.com
- 8xAA NiMh 2500mAh (~11V regulated to 9V)
